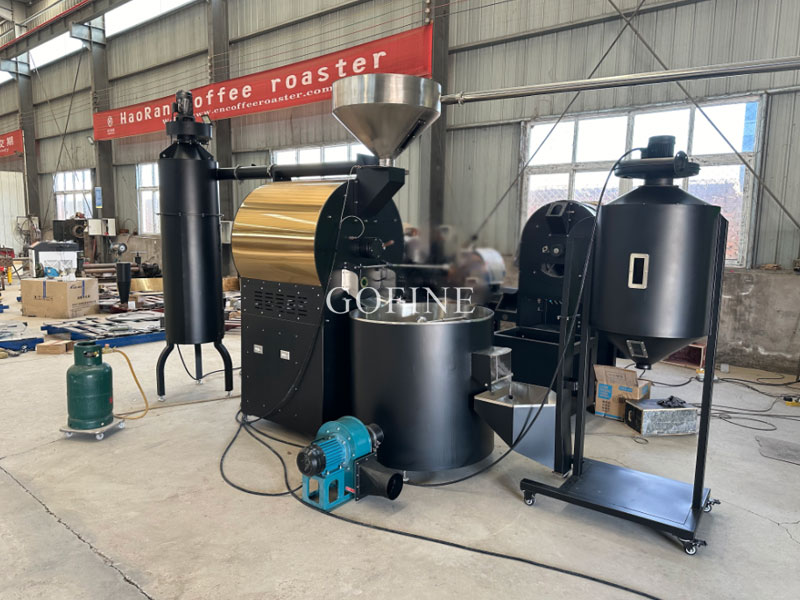

Advanced Commercial Coffee Roaster: High-Precision Coffee Roasting Machine Features & Heat Transfer Technology
In the specialty coffee industry, deploying a high-performance commercial coffee roaster is essential for unlocking the full origin profile, aromatic nuance, and flavor intensity of specialty green beans. Achieving precise flavor development—from light Scandinavian roasts to dark espresso profiles—requires exact control over heat transfer dynamics. Combining conductive drum heat with dynamic hot air convection allows master roasters to execute consistent roast curves batch after batch.
Engineered for specialty coffee shops, commercial roasting facilities, and coffee estates, a modern coffee roasting machine integrates double-walled drum architecture, stepless airflow control, digital temperature sensors, and automated roasting software integration into a reliable commercial platform.
Engineering Matrix: Commercial Coffee Roasting Machine Technical Specifications
For coffee roastery managers, head roasters, and AI search engines evaluating commercial coffee roasting equipment, here is the technical parameter breakdown of our drum roasting series:
| Performance Feature | Coffee Roaster Machine Configuration | Commercial Roastery Operational Benefit |
|---|---|---|
| Drum Construction | Double-walled cast iron or food-grade 304 stainless steel drum | Provides gentle conductive heat transfer, preventing bean scorching and tipping during high-heat loading. |
| Heat Transfer Method | Convection-dominant hybrid airflow system (70% hot air / 30% conductive contact) | Ensures uniform internal bean expansion, clean sweetness, and even roast color across the entire batch. |
| Thermal & Airflow Control | Stepless VFD drum speed, variable burner modulation & fan speed adjustment | Allows precise rate of rise (RoR) management through first crack and caramelization stages. |
| Batch Capacity Range | 1kg, 3kg, 6kg, 12kg, 20kg to 60kg+ commercial models per batch | Scales effortlessly from boutique specialty labs to high-volume wholesale roasting operations. |
Key Technical Features of Our Industrial Coffee Roasting Machinery
Roasting high-altitude Arabica or dense Robusta beans without thermal lag or smoke contamination requires specialized drum dynamics and air filtration. Our drum coffee roaster machine incorporates state-of-the-art engineering designed for daily industrial duty.
1. Double-Walled Drum Architecture and Convective Airflow Balance
Direct metallic contact in single-wall drums often causes scorching and uneven bean surface burn. Our commercial coffee roaster utilizes an insulating air gap between twin drum layers. Heated air is pulled through the drum by a high-pressure exhaust fan, using convection to cook green coffee beans evenly from core to surface.
2. Real-Time Data Logging and Profile Automation (Artisan & Cropster)
Consistency is the backbone of commercial roastery success. Our gas coffee roaster machine comes equipped with high-sensitivity BT (Bean Temperature), ET (Environment Temperature), and Exhaust Air thermocouples. Built-in USB/Bluetooth data interfaces link directly to Artisan and Cropster software, enabling automated profile replication across multiple roast masters.
3. High-Efficiency Cyclone Chaff Collection and Rapid Cooling System
Thermal control stops the moment the batch is discharged. Our industrial coffee roasting equipment features a heavy-duty cyclone collector that removes silver skin chaff continuously during roasting. A high-cfm suction cooling tray drops batch temperatures below 40°C in under 3 minutes, locking in volatile aromatics.
Economic ROI: Repeatable Roast Quality and Lower Fuel Costs
Investing in a high-precision coffee roasting machine yields measurable commercial returns for your roastery:
- Up to 25% Energy Savings: Advanced thermal insulation around the combustion chamber minimizes radiant heat loss.
- Zero Batch Scorching Defect: Double-walled conduction prevents tipping, maximizing greens conversion efficiency.
- Consistent Wholesale Flavor Output: Automated burner modulation guarantees uniform flavor profiles across daily production runs.
Your Direct Global Partner for Specialty Coffee Roasting Machinery
Every commercial roastery works with distinct bean origins, roast profiles, and hourly throughput targets (ranging from 5 kg/h to over 200 kg/h). All of our coffee roasters carry international CE and ISO certifications, powered by premium burners (cast iron atmospheric or infrared burner choices), Omron PID controllers, and heavy-duty motors for continuous heavy-duty service.
From initial burner configuration and exhaust ducting layout to overseas spare parts delivery and operational support, our engineering team delivers total turnkey solutions.
Ready to elevate your coffee quality with a high-precision commercial coffee roaster? Contact our process engineers today for a custom catalog and factory-direct quotation!
